| UID: | 000986952 |
|---|---|
| Type: | Automatic domain |
| Parent: | e1gciA1 |
| Range: | C:1-275 |
| Ligands: | ACT CA GOL IPA |
| PDB: | 4hx2 |
| PDB Description: | KerA |
| UniProt: | Q9FDF2 |
| Hsap BLAST neighbor: | Q14703 |
| Species: | Bacillus licheniformis |

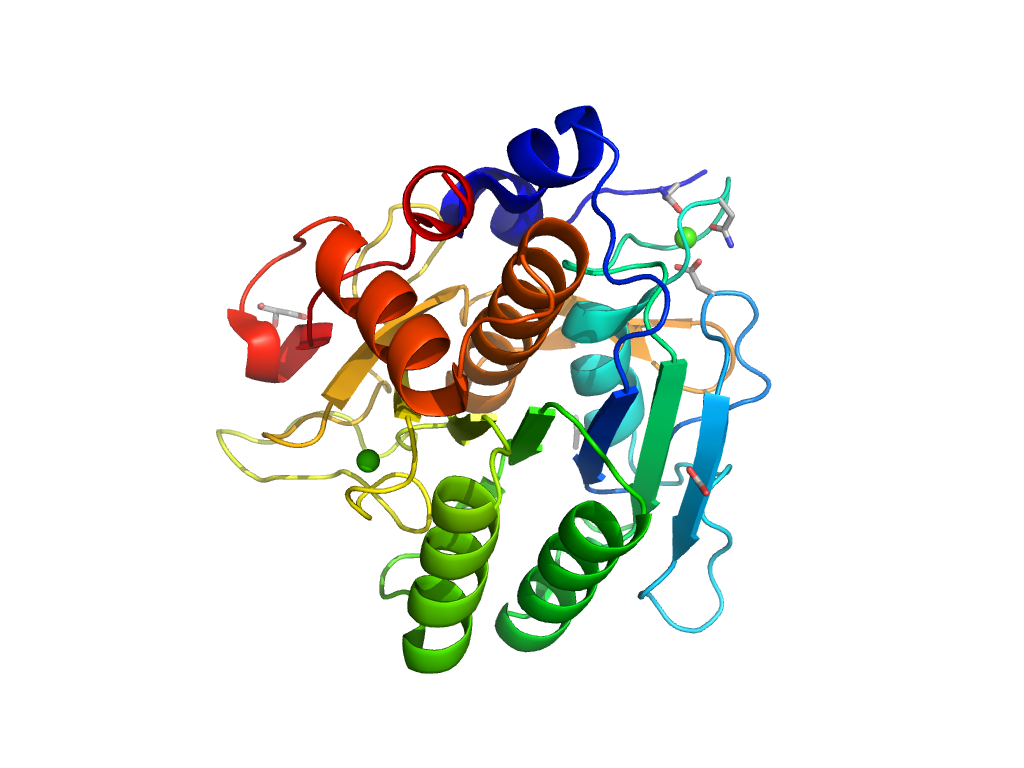

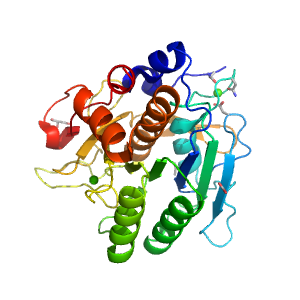

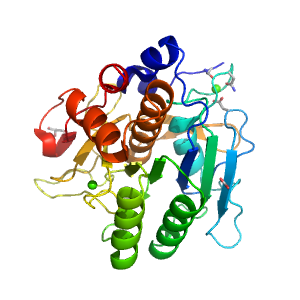

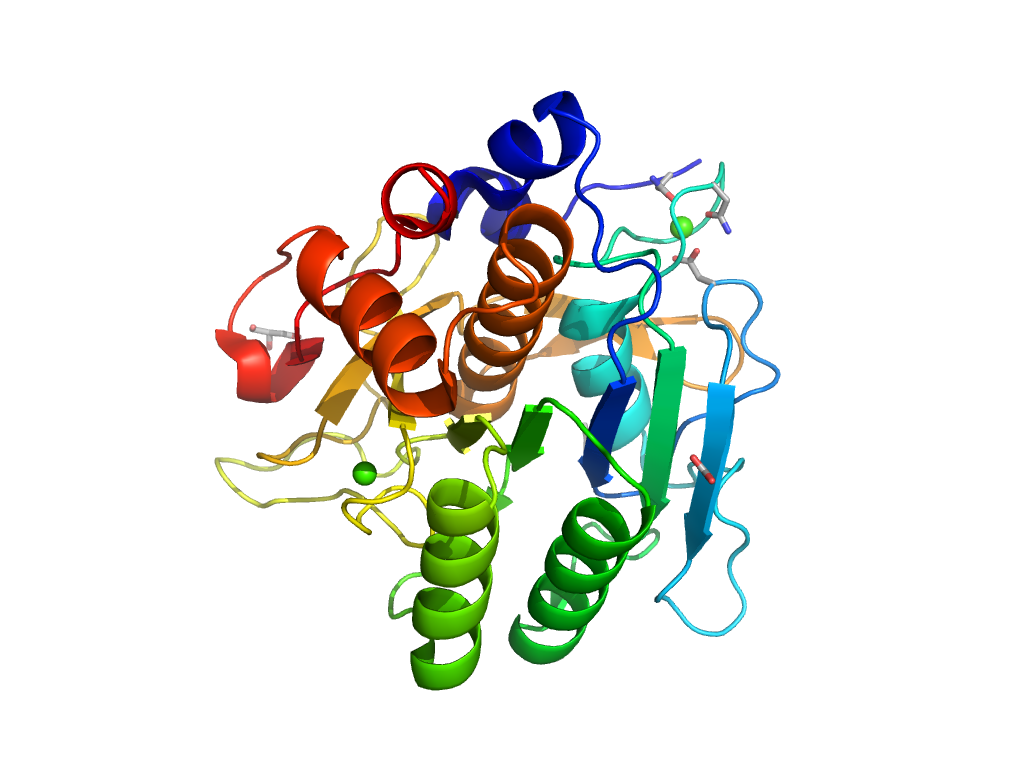

Structure of domain e4hx2C1
Domains in the same chain:
| e4hx2C1 | C:1-275 | Subtilisin-like | Subtilisin-like | Subtilisin-like |
Domains in the same PDB:

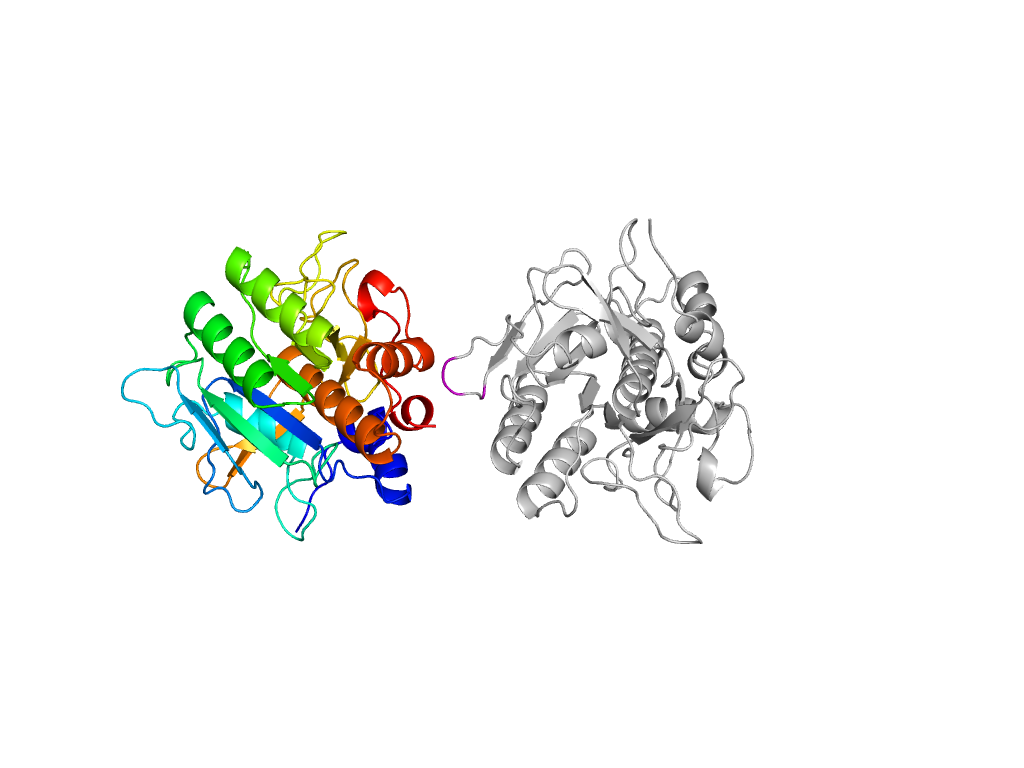

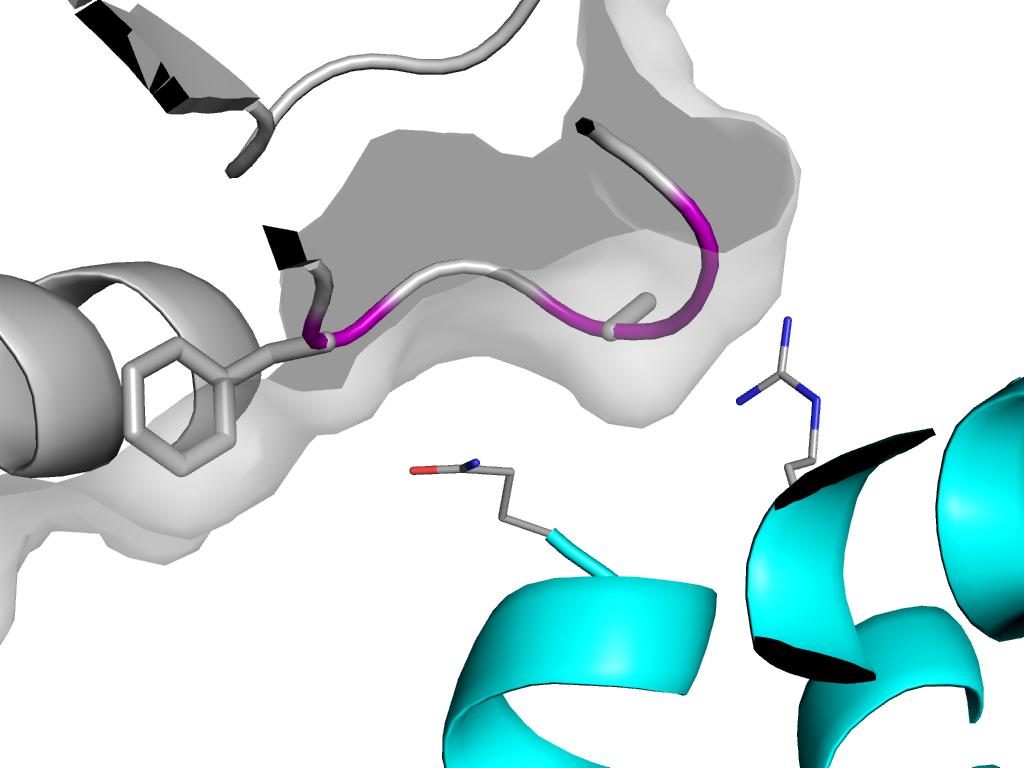

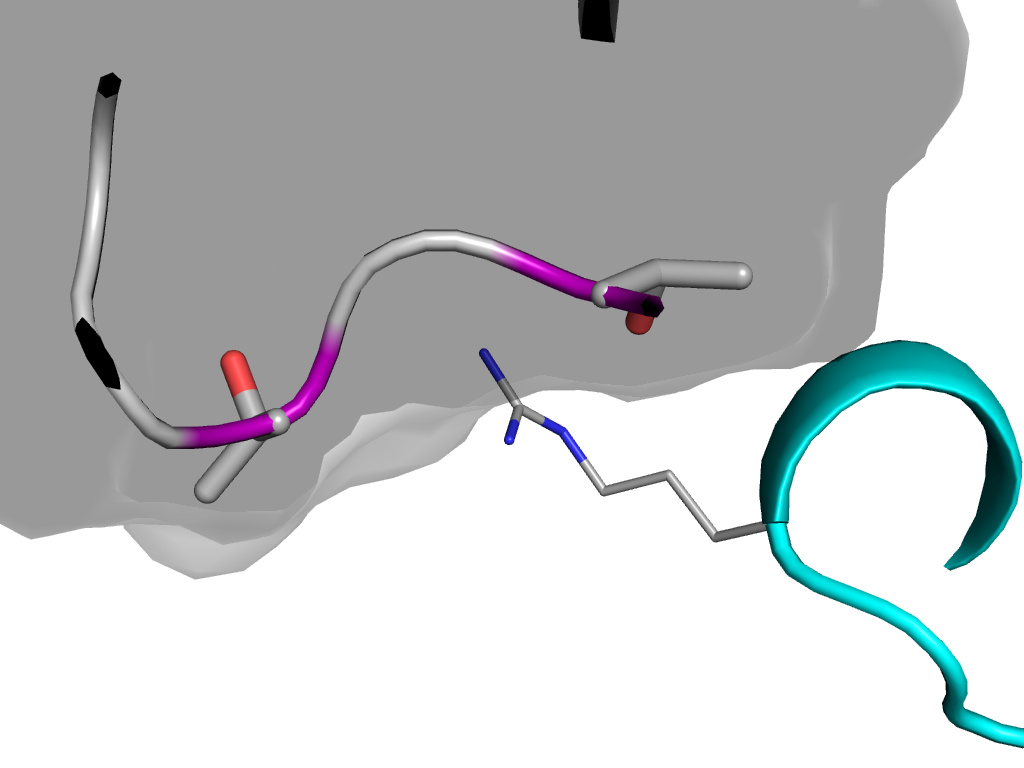

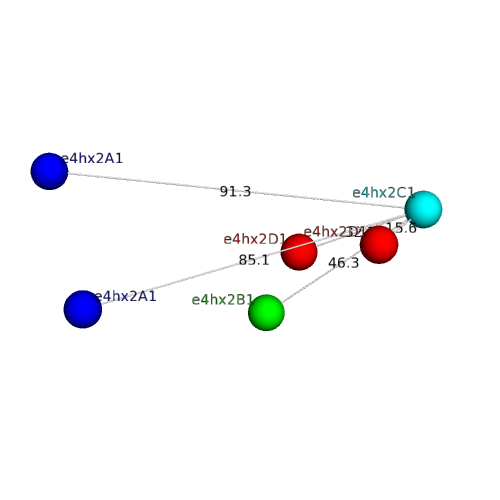

Structural contacts of domain e4hx2C1 of H-group "Subtilisin-like":
The domain and its neighboring domains (both within the asymmetric unit and to crystallographic symmetry mates) are represented by spheres and linked by lines. Distances between the center of the domain and interfaces are shown for each contact.
| Domain ID | Symmetry operator | H-group | Visualization |
|---|---|---|---|

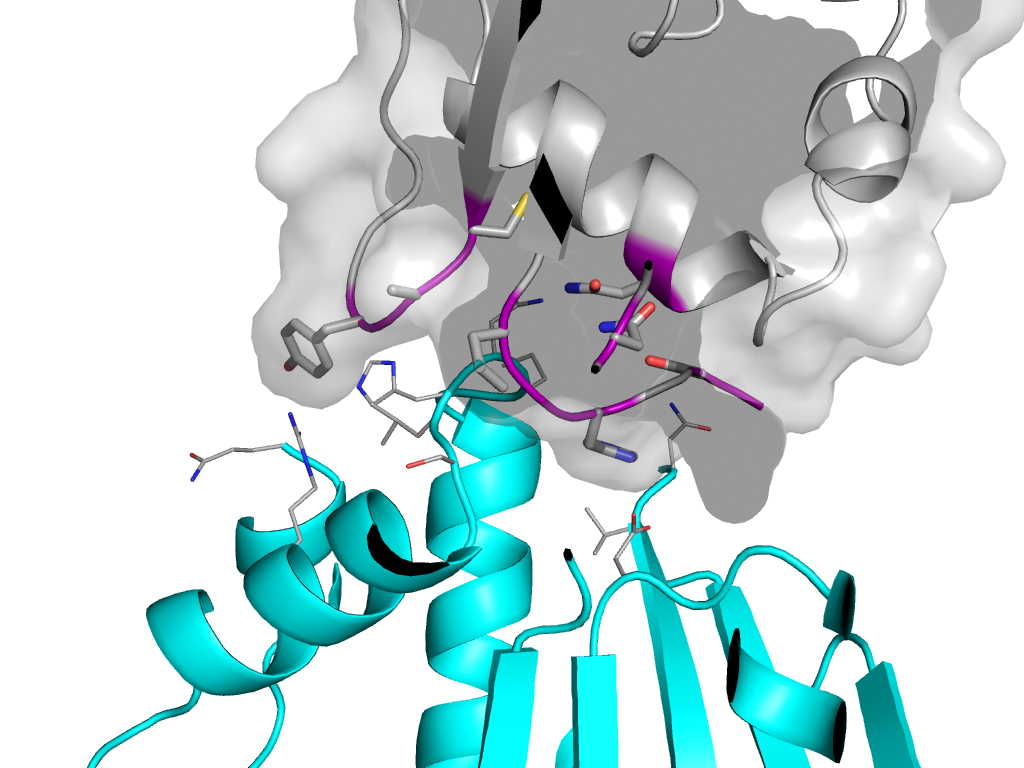

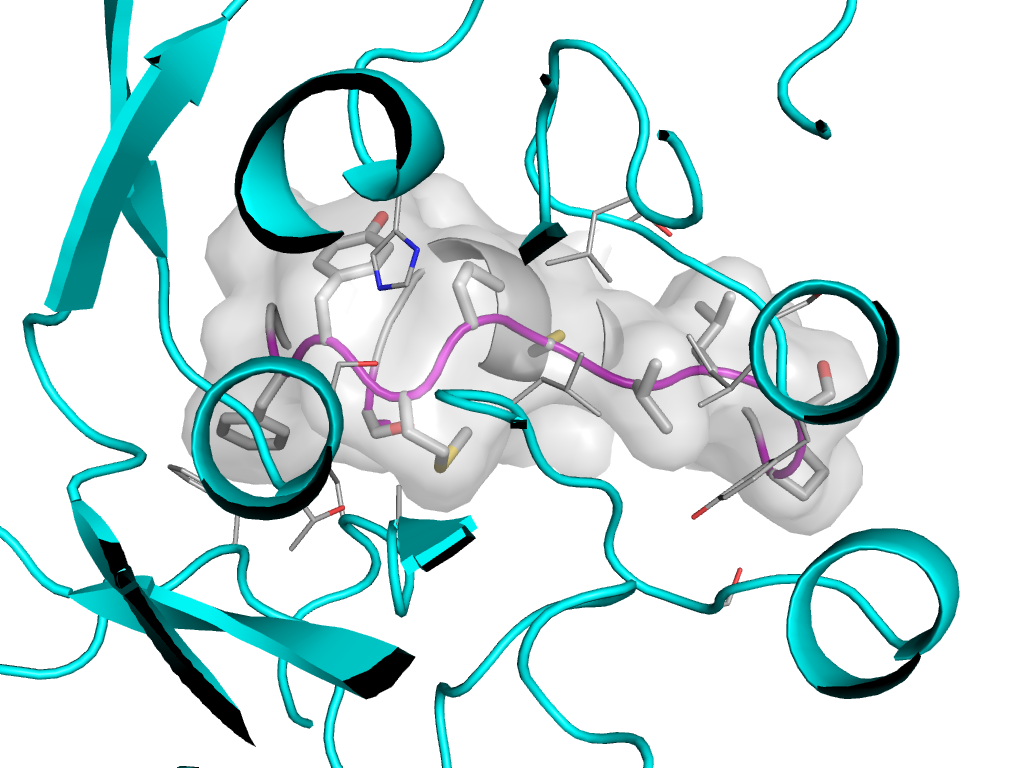

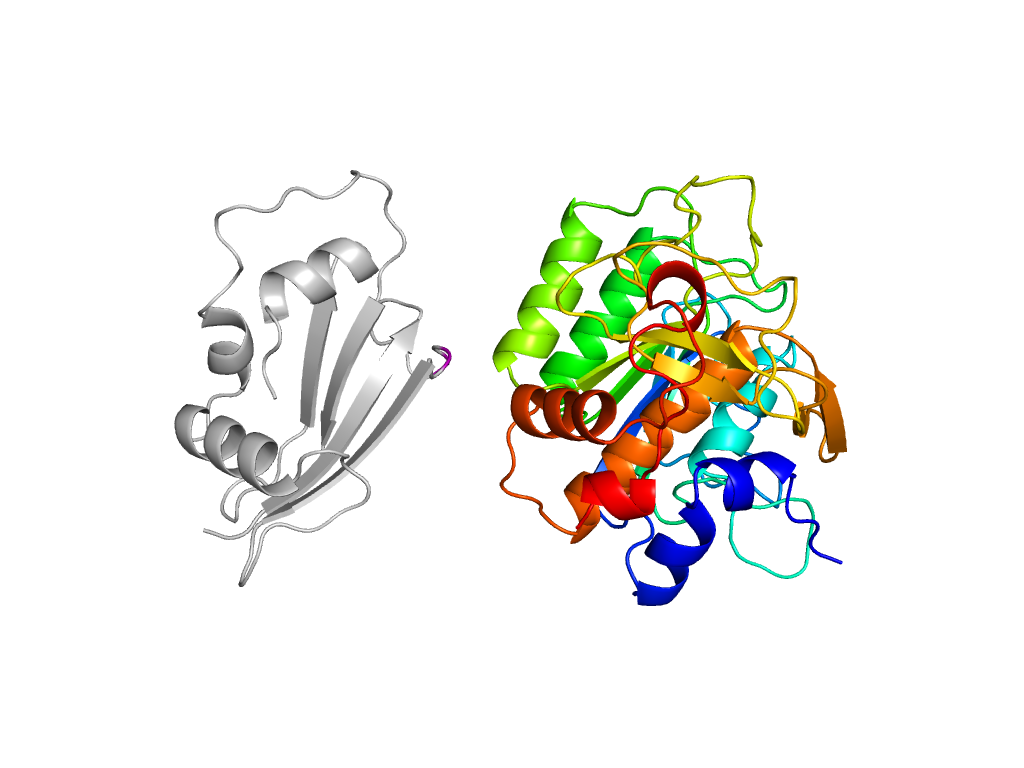

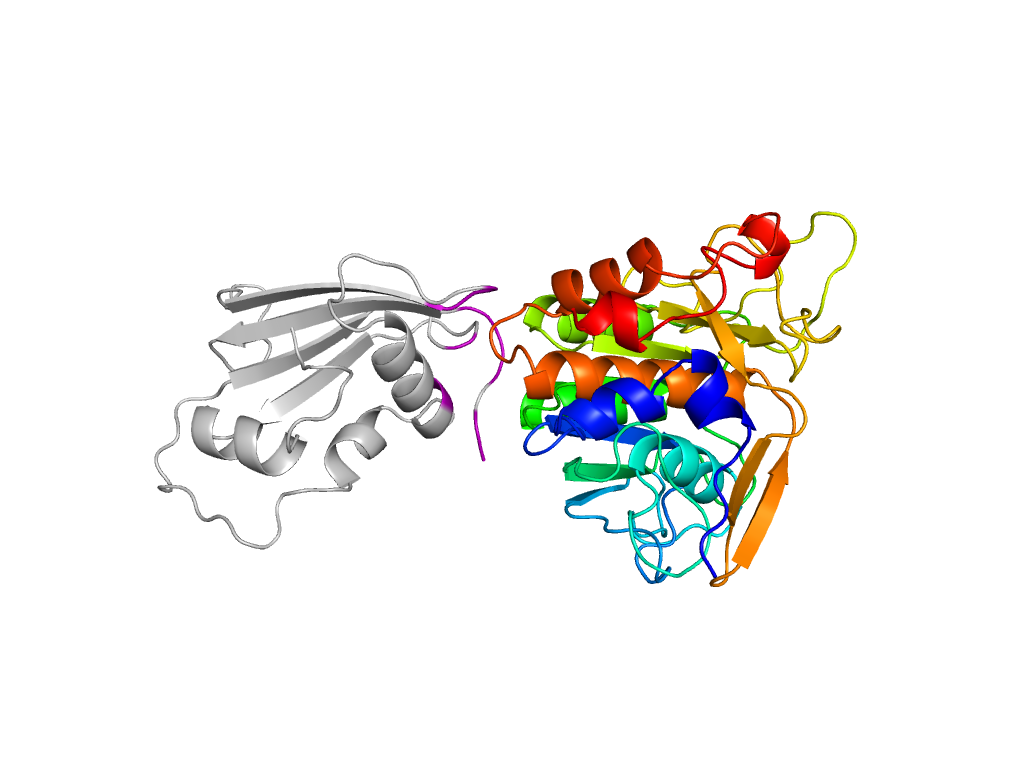

| e4hx2D1 | C:X,Y,Z->D:x,y,z | Subtilisin inhibitor | Interaction Interface Pymol |
| e4hx2B1 | C:-X+1/2,Y-1/2,-Z+1->B:x,y,z | Subtilisin inhibitor | Interaction Interface Pymol |

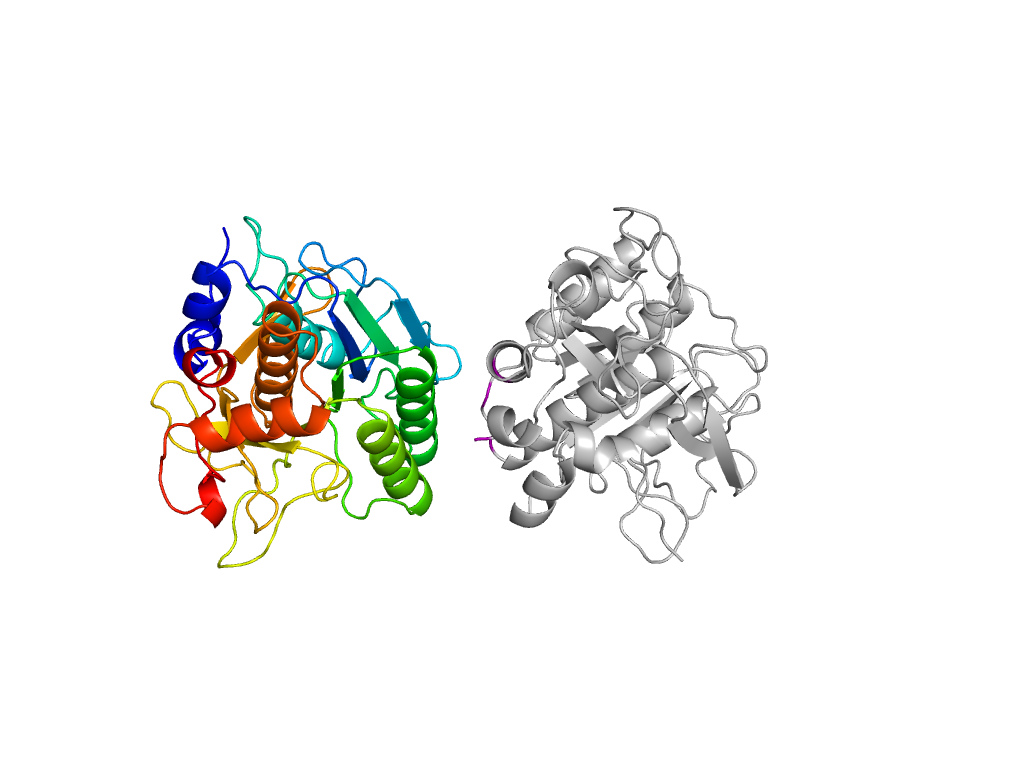

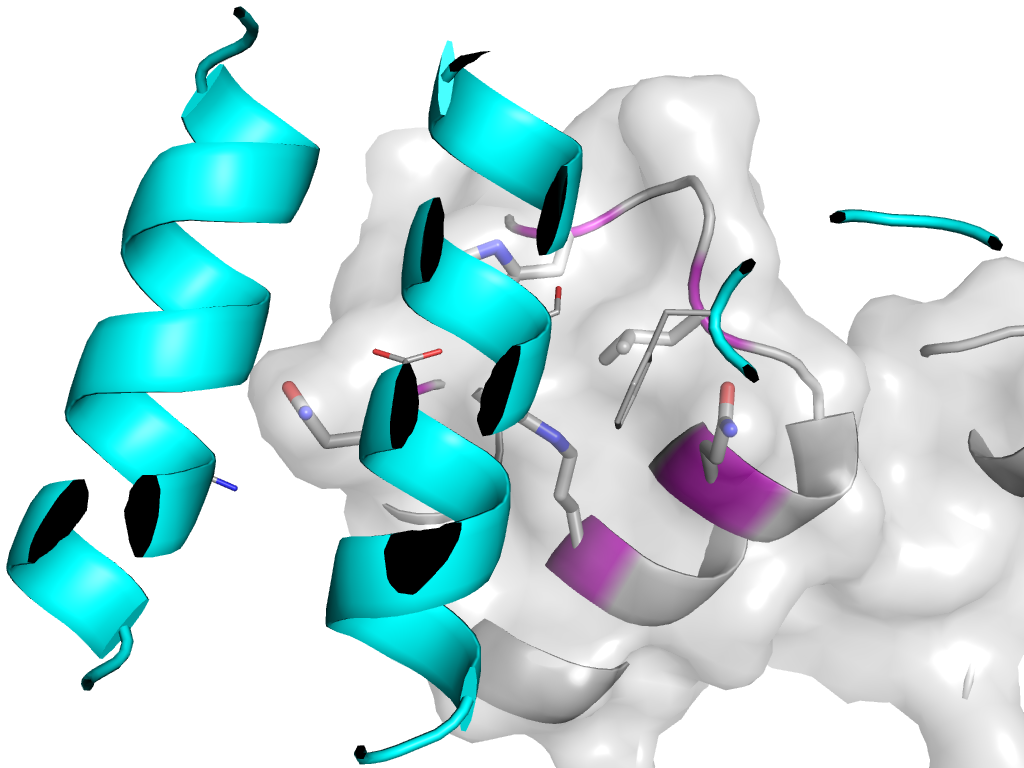

| e4hx2A1 | C:X-1/2,Y-1/2,Z-1->A:x,y,z | Subtilisin-like | Interaction Interface Pymol |
| e4hx2A1 | C:X-1/2,Y-1/2,Z->A:x,y,z | Subtilisin-like | Interaction Interface Pymol |
| e4hx2D1 | C:-X+1/2,Y-1/2,-Z+1->D:x,y,z | Subtilisin inhibitor | Interaction Interface Pymol |
| e4hx2A1 | C:x,y,z->A:-X,Y,-Z | Subtilisin-like | Interaction Interface Pymol |
